EV Car Charger

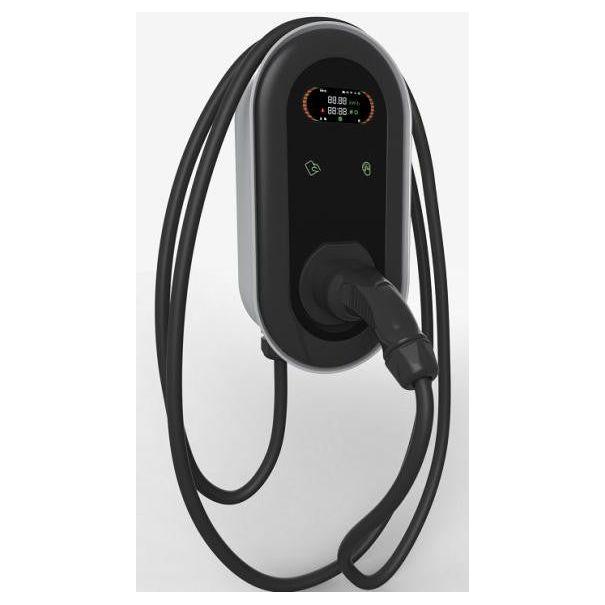

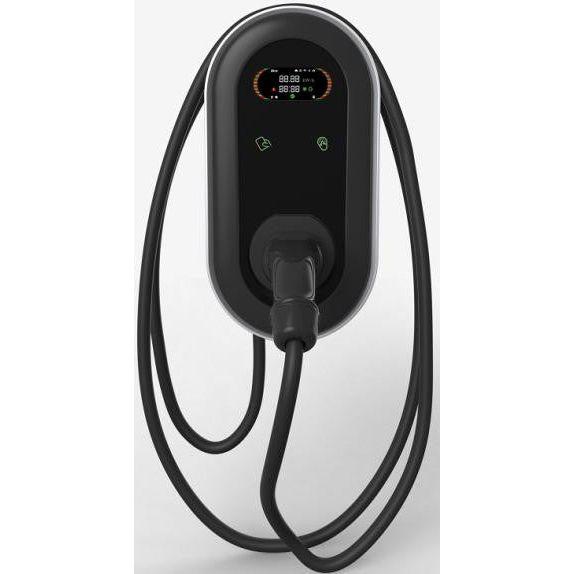

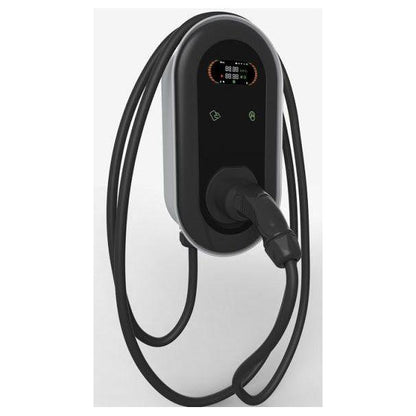

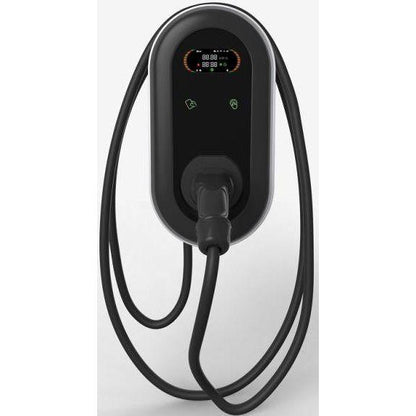

ANS-H2 Smart Wallbox Charger 7 KW 5M Tethered Cable / DLB Solar management+ CT hub
ANS-H2 Smart Wallbox Charger 7 KW 5M Tethered Cable / DLB Solar management+ CT hub
Couldn't load pickup availability
Description
7kW smart wallbox, ideal choice for home charging: smart, safe and simple.
Features:
AC 30mA+DC 6mA RCD Inside
Provide a more comprehensive detection capability for various residual fault currents.
IP55 Protection
Better protect the product integrity, produce a longer charger lifespan.
Remote schedule the charging
With WiFi connection and mobile APP, you can schedule the charging remotely.
LCD Display
The 3.5" inch screen display the charger status, charging power, etc.
-
ocpp 1.6j
-
WiFi Connection / App. EVSELink
-
Over-the-Air updates .
-
7kW power
-
Tethered with 5m cable / Socket version available
-
Post mount available
- DLB / Solar management CT / CT HUB
SPECIFICATION
Specification
Product Model ANS-H2
Rated Input Voltage 230VAC ± 10% / Single Phase
AC Power Frequency 50/60 Hz
Rated Output Power 7kW
Rated Output Current 32A
Input Protection UVP, OVP, RCD, SPD, Ground Fault Protection
Output Protection OCP, OTP, Control Pilot Fault Protection
Output Interface IEC 62196-2 Compliant, Type 2
Storage Temperature -40°C to +85°C
Operating Temperature -30℃ ~ 55℃
Relative Operation Humidity 95% RH Maximum
Relative Storage Humidity 95% RH Maximum
RFID Authentication LAN Version / Wi-Fi Version
RJ45 Cable Inlet*1 10M / 100M Base-T
Wi-Fi Function*2 802.11 b/g/n
Cable Length 5m Standard
IP/lK Level IP55/IK08
Installation Type Wall-Mounted
Altitude 2000m
Display 3.5”color LCD
Share
- Description
- SPECIFICATION
- Delivery & Returns
Description
7kW smart wallbox, ideal choice for home charging: smart, safe and simple.
Features:
AC 30mA+DC 6mA RCD Inside
Provide a more comprehensive detection capability for various residual fault currents.
IP55 Protection
Better protect the product integrity, produce a longer charger lifespan.
Remote schedule the charging
With WiFi connection and mobile APP, you can schedule the charging remotely.
LCD Display
The 3.5" inch screen display the charger status, charging power, etc.
-
ocpp 1.6j
-
WiFi Connection / App. EVSELink
-
Over-the-Air updates .
-
7kW power
-
Tethered with 5m cable / Socket version available
-
Post mount available
- DLB / Solar management CT / CT HUB
Specification
Product Model ANS-H2
Rated Input Voltage 230VAC ± 10% / Single Phase
AC Power Frequency 50/60 Hz
Rated Output Power 7kW
Rated Output Current 32A
Input Protection UVP, OVP, RCD, SPD, Ground Fault Protection
Output Protection OCP, OTP, Control Pilot Fault Protection
Output Interface IEC 62196-2 Compliant, Type 2
Storage Temperature -40°C to +85°C
Operating Temperature -30℃ ~ 55℃
Relative Operation Humidity 95% RH Maximum
Relative Storage Humidity 95% RH Maximum
RFID Authentication LAN Version / Wi-Fi Version
RJ45 Cable Inlet*1 10M / 100M Base-T
Wi-Fi Function*2 802.11 b/g/n
Cable Length 5m Standard
IP/lK Level IP55/IK08
Installation Type Wall-Mounted
Altitude 2000m
Display 3.5”color LCD
