ELECTRLY

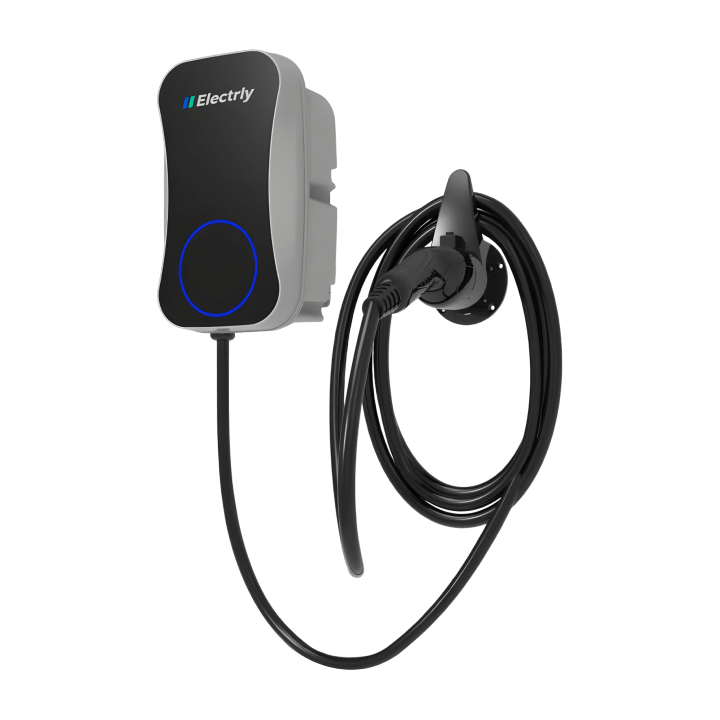

Electrly A11-L Home EV charger 7 Kw Type 2 Tethered

Electrly A11-L Home EV charger 7 Kw Type 2 Tethered

Regular price £464.99 GBP
Regular price Sale price £464.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Powerful & Reliable Home Charger

Our Road Charge A11 is a powerful up-to-7kW EV charging station combining OCPP 1.6J compatibility with smart features like WiFi control and RFID authentication. Its IP65-rated construction ensures reliable performance in all weather conditions, making it ideal for any charging application.

7KW Road Charge -A11 LED indicators

HomeVolt EV Charger with Type 2 connector with O-PEN protection
With Wifi/ App
With OCPP 1.6J

With RCD 30mA Type A + 6mA DC protection
With IP65
With CE/ UKCA Certificate

RFID module and  LED charging status indicator

Home power load balance management: Single phase

Specification

Road Charge - A11 Full Specs

7kW EU Standard 11kW EU Standard 22kW EU Standard 7kW US Standard 9.6kW US Standard 11kW US Standard
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE L1+L2+PE L1+L2+PE L1+L2+PE
Rated Voltage AC 220-240V AC 380-400V AC 380-400V AC 208-240V AC 208-240V AC 208-240V
Rated Current 32A (32A, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable)
Output Voltage AC 220-240V AC 380-400V AC 380-400V AC 220-240V AC 380-400V AC 380-400V
Maximum Current 32A (32A×2, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 32A (32A, 24A adjustable) 40A (40A, 32A, 24A adjustable) 48A (48A, 40A, 32A, 24A adjustable)
Rated Power 7kW 11kW 22kW 7kW 9.6kW 11kW
Charger Connector Type 2 Cable Type 2 Cable Type 2 Cable SAE J1772, Type 1 SAE J1772, Type 1 SAE J1772, Type 1
Cable Length 5m 5m 5m 5m 5m 5m
Material ABS ABS ABS ABS ABS ABS
Color Black+Silver Black+Silver Black+Silver Black+Silver Black+Silver Black+Silver
Ring LED Strip Yes Yes Yes Yes Yes Yes
LED Display No 4.3" LED screen 4.3" LED screen 4.3" LED screen 4.3" LED screen 4.3" LED screen
Plug in and Charge Yes Yes Yes Yes Yes Yes
APP Yes Yes Yes Yes Yes Yes
MID Energy Meter No No No No No No
WiFi/Bluetooth Yes Yes Yes Yes Yes Yes
Ethernet/LAN Optional Optional Optional Optional Optional Optional
4G/SIM Optional Optional Optional Optional Optional Optional
OCPP 1.6J Optional Optional Optional Optional Optional Optional
Ingress Protection Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65
Impact Protection IK10 IK10 IK10 IK10 IK10 IK10
Over Current Protection Yes Yes Yes Yes Yes Yes
Residual Current Protection (AC30mA) Yes Yes Yes Yes Yes Yes
Ground Monitor Yes Yes Yes Yes Yes Yes
Surge Protection Yes Yes Yes Yes Yes Yes
Over/Under Voltage Protection Yes Yes Yes Yes Yes Yes
Over Temperature Protection Yes Yes Yes Yes Yes Yes
Certification CE CE CE CE CE CE
Certification Standard EN IEC 61851, EN 62196 EN IEC 61851, EN 62196 EN IEC 61851, EN 62196 UL 2594:2022 / CSA C22.2#280:2022 UL 2594:2022 / CSA C22.2#280:2022 UL 2594:2022 / CSA C22.2#280:2022
Warranty 2 years 2 years 2 years 2 years 2 years 2 years
Installation Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount
Working Temperature -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C
Working Humidity 3% to 95% 3% to 95% 3% to 95% 3% to 95% 3% to 95% 3% to 95%
Working Altitude <2000m <2000m <2000m <2000m <2000m <2000m
Product Dimensions (H×W×D) 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm
Package Dimensions (L×W×H) 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm
Net Weight 4.75kg 6.25kg 6.25kg 4.75kg 6.25kg 6.25kg
Gross Weight 5.95kg 7.5kg 7.5kg 5.95kg 7.5kg 7.5kg
External Package Carton Carton Carton Carton Carton Carton

View full details
Description

Powerful & Reliable Home Charger

Our Road Charge A11 is a powerful up-to-7kW EV charging station combining OCPP 1.6J compatibility with smart features like WiFi control and RFID authentication. Its IP65-rated construction ensures reliable performance in all weather conditions, making it ideal for any charging application.

7KW Road Charge -A11 LED indicators

HomeVolt EV Charger with Type 2 connector with O-PEN protection
With Wifi/ App
With OCPP 1.6J

With RCD 30mA Type A + 6mA DC protection
With IP65
With CE/ UKCA Certificate

RFID module and  LED charging status indicator

Home power load balance management: Single phase

Specification

Road Charge - A11 Full Specs

7kW EU Standard 11kW EU Standard 22kW EU Standard 7kW US Standard 9.6kW US Standard 11kW US Standard
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE L1+L2+PE L1+L2+PE L1+L2+PE
Rated Voltage AC 220-240V AC 380-400V AC 380-400V AC 208-240V AC 208-240V AC 208-240V
Rated Current 32A (32A, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable)
Output Voltage AC 220-240V AC 380-400V AC 380-400V AC 220-240V AC 380-400V AC 380-400V
Maximum Current 32A (32A×2, 16A, 10A adjustable) 16A (16A, 10A adjustable) 32A (32A, 16A, 10A adjustable) 32A (32A, 24A adjustable) 40A (40A, 32A, 24A adjustable) 48A (48A, 40A, 32A, 24A adjustable)
Rated Power 7kW 11kW 22kW 7kW 9.6kW 11kW
Charger Connector Type 2 Cable Type 2 Cable Type 2 Cable SAE J1772, Type 1 SAE J1772, Type 1 SAE J1772, Type 1
Cable Length 5m 5m 5m 5m 5m 5m
Material ABS ABS ABS ABS ABS ABS
Color Black+Silver Black+Silver Black+Silver Black+Silver Black+Silver Black+Silver
Ring LED Strip Yes Yes Yes Yes Yes Yes
LED Display No 4.3" LED screen 4.3" LED screen 4.3" LED screen 4.3" LED screen 4.3" LED screen
Plug in and Charge Yes Yes Yes Yes Yes Yes
APP Yes Yes Yes Yes Yes Yes
MID Energy Meter No No No No No No
WiFi/Bluetooth Yes Yes Yes Yes Yes Yes
Ethernet/LAN Optional Optional Optional Optional Optional Optional
4G/SIM Optional Optional Optional Optional Optional Optional
OCPP 1.6J Optional Optional Optional Optional Optional Optional
Ingress Protection Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65 Outer shell IP65
Impact Protection IK10 IK10 IK10 IK10 IK10 IK10
Over Current Protection Yes Yes Yes Yes Yes Yes
Residual Current Protection (AC30mA) Yes Yes Yes Yes Yes Yes
Ground Monitor Yes Yes Yes Yes Yes Yes
Surge Protection Yes Yes Yes Yes Yes Yes
Over/Under Voltage Protection Yes Yes Yes Yes Yes Yes
Over Temperature Protection Yes Yes Yes Yes Yes Yes
Certification CE CE CE CE CE CE
Certification Standard EN IEC 61851, EN 62196 EN IEC 61851, EN 62196 EN IEC 61851, EN 62196 UL 2594:2022 / CSA C22.2#280:2022 UL 2594:2022 / CSA C22.2#280:2022 UL 2594:2022 / CSA C22.2#280:2022
Warranty 2 years 2 years 2 years 2 years 2 years 2 years
Installation Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount Wall-mount / Pole-mount
Working Temperature -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C
Working Humidity 3% to 95% 3% to 95% 3% to 95% 3% to 95% 3% to 95% 3% to 95%
Working Altitude <2000m <2000m <2000m <2000m <2000m <2000m
Product Dimensions (H×W×D) 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm 330×200×105mm
Package Dimensions (L×W×H) 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm 540×440×160mm
Net Weight 4.75kg 6.25kg 6.25kg 4.75kg 6.25kg 6.25kg
Gross Weight 5.95kg 7.5kg 7.5kg 5.95kg 7.5kg 7.5kg
External Package Carton Carton Carton Carton Carton Carton
