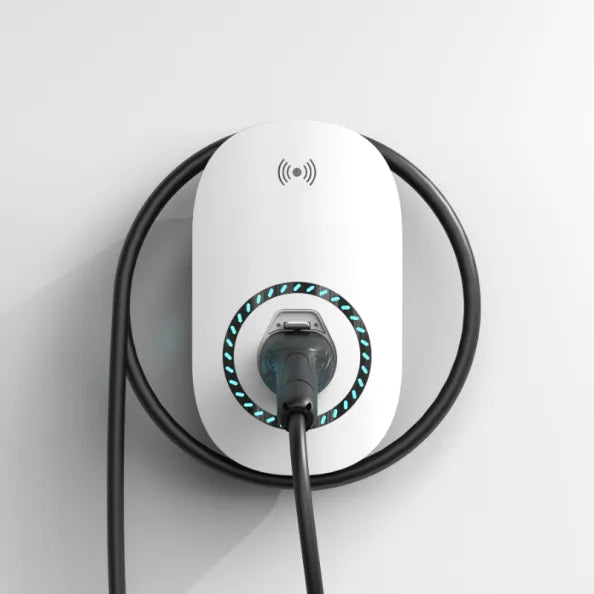

ERACharge F-EVEPCA-22 22 KW / 32A Three Phase / Smart / 4G / 5M Tethered Charger
ERACharge F-EVEPCA-22 22 KW / 32A Three Phase / Smart / 4G / 5M Tethered Charger
Couldn't load pickup availability
With a power output range of 22-KW, our F-EVEPCA -22 charging stations can meet the charging needs of most electric vehicle owners. They also support dynamic load balancing and come with Type A + DC 6mA leakage protection to ensure the safety of household electricity. The EV Solutions Charging Station is an essential component of the modern electric vehicle ecosystem, offering flexible, reliable, and user-friendly charging solutions that cater to the diverse needs of EV drivers. Whether for personal, commercial, or public use, these stations play a crucial role in supporting the widespread adoption of electric vehicles and the transition to a more sustainable future.
Features
● Leakage Protector: AC+DC6mA;
● Support reservation charging, power adjustment
● RFID function for residential application;
● Complies with the OCPP1.6J protocol
● Wireless connection with Bluetooth /WiFi /4G for business applications ;
● Optional wall-mounted installation or pedestal installation for different installation demand
● Ethernet/ RS 485 interfaces/Dynamic load balance for business applications / 4G
● Ring 12 colour ambient technology light;
SPECIFICATION
|
Specifications: |
|||
|
Product model: |
F-EVEPCA-07 |
F-EVEPCA-11 |
F-EVEPCA-22 |
|
Input Power: |
7.4kW |
11kW |
22kW |
|
Input Voltage: |
AC 230V |
AC 380V |
AC 380V |
|
Rated Input Current: |
32A |
16A |
32A |
|
Operating Frequency: |
50Hz |
||
|
Phase: |
Singe Phase |
Three Phase |
|
|
IP Rating: |
IP55 |
||
|
Altitude: |
≤2000m |
||
|
Related Temperature: |
5％～95％ No condensation |
||
|
Operating Temperature: |
-25℃～+50℃ |
||
|
Storage Temperature: |
-40℃～+85℃ |
||
|
Leakage Protection Current: |
DC 6mA, AC 30mA |
||
|
Material: |
PC+ASA |
||
|
Cable length |
5M |
||
|
Connector power line contact: |
CEE plug |
||
|
Functions: |
4G; RFID cards；Plug in and charge ; DLB ; |
||
|
Communication Protocol: |
OCPP1.6 JSON |
||
|
APP Available: |
Yes |
||
|
Product Size: |
355*198*105mm |
||
|
Net Weight: |
≤5kg |
||
