HYDRA CUBUS 7kW Socketed EV Charger (Black)
HYDRA CUBUS 7kW Socketed EV Charger (Black)
Couldn't load pickup availability

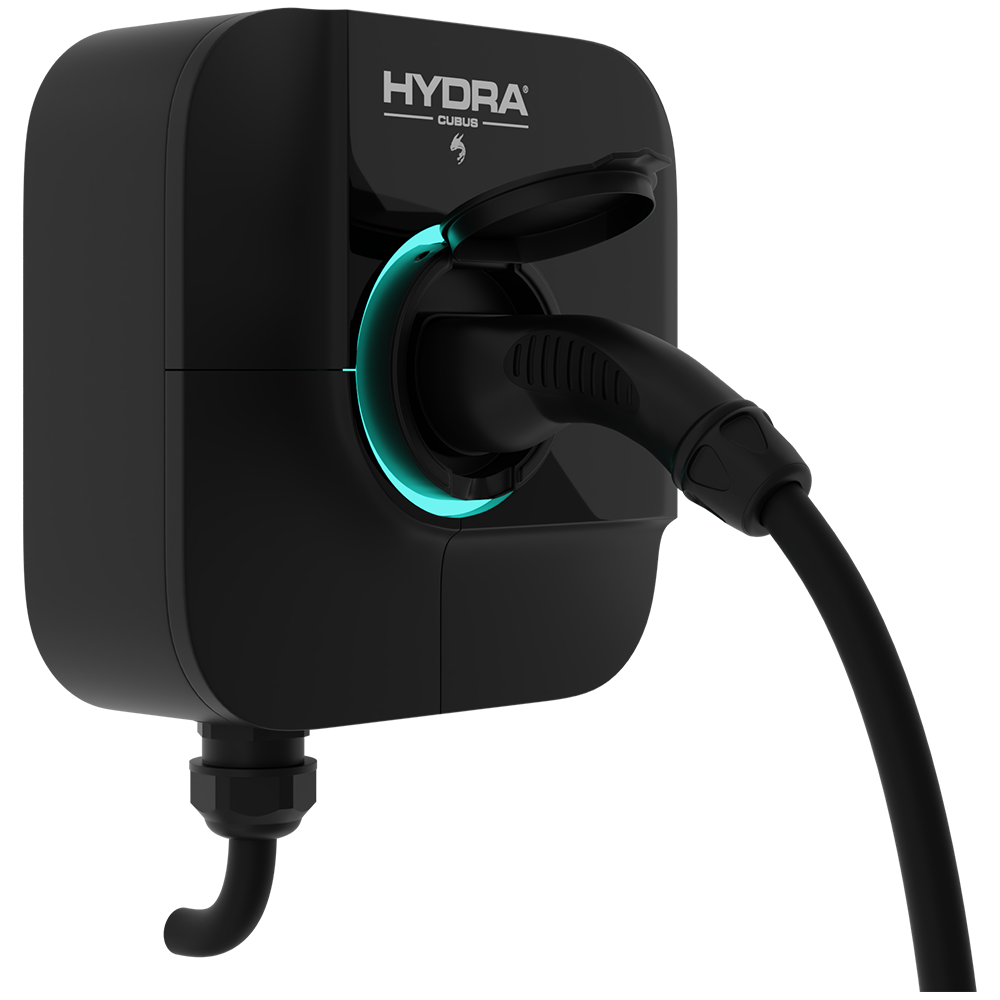

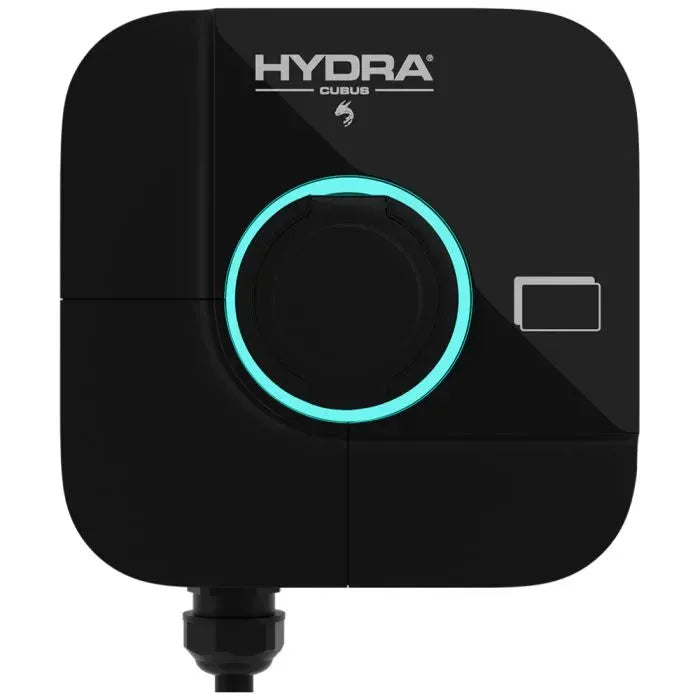

The HYDRA CUBUS HC-7-SO-BLK is a 7kW untethered EV charger designed for the UK market, suitable for both home and commercial applications. Its sleek, compact design includes all key functions for convenient and future-proof EV charging.
Key Features:
- Type B Leakage Protection: Equipped with 6mA DC and 30mA AC leakage protection to ensure safe operation.
- Flexible Startup Options: Supports various charging initiation methods, including RFID card or key fob, smartphone app, or a plug-and-charge mode.
- Dynamic Load Balancing: Features dynamic load management and solar PV matching, optimising energy use and supporting integration with solar power systems.
- Connectivity: Standard Wi-Fi, Ethernet, and 4G SIM connectivity options enable easy monitoring and control.
- Cost-Saving Charging: Allows scheduling of off-peak and tariff-based charging sessions to reduce electricity costs.
- O-Pen Protection: Built-in O-Pen protection eliminates the need for an earth rod, streamlining installation and reducing costs.
- Hierarchical Maintenance Design: Allows for easy maintenance and part replacement.
- OCPP 1.6 JSON Compliance: Fully compatible with most EV charging management platforms for flexible control.
- Comprehensive Safety: Features overcurrent, overvoltage, and short-circuit protections for enhanced safety.
- UKCA Certification: Certified for UK safety standards.
This untethered model provides a robust and flexible charging solution ideal for future-proofing residential and commercial EV infrastructure.
SPECIFICATION
| Brand: | Hydra |
| Range: | Cubus |
| Product Type: | EV Charger |
| Power Rating: | 7.4kW |
| RFID Control: | Yes |
| Connectivity | WiFi/4G/Ethernet/Bluetooth |
| Charging Modes | ECO, ECO+, Fast Charge |
| Solar Compatibility | Yes |
| Hydra App Compatible | Yes |
| Connection Type: | Type 2 Socket |
| Charging Cable Length | N/A |
| Compatibility | Type 2 Vehicles |
| Installation Network | TN, IT, TT |
| Mounting: | Wall or Pedestal |
| Charging Methods | Plug and Charge, RFID, App, Keyfob |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Housing Material: | PC+ASA (UL94 V-0 Fire Rated) |
| Standby Power Consumption | <8W |
| Supply Cable Entry | 18mm-24mmØ Hole Drilled at Site Through Top and Bottom of Enclosure |
| Power Supply | Single Phase + N + PE |
| Voltage | 230V |
| Variable Current | 6A-32A |
| Input Frequency: | 50/60Hz |
| RCD Protection: | Built-In Type B RCD DC 6mA/AC 30 mA |
| Ground Protection | Built-In O-PEN Protection |
| Over Current Protection | 40A Supply (External MCB) |
| Surge Protection | Yes |
| Over/Under Voltage Safety Protection | Yes |
| Over Temperature Protection | Yes |
| Short Circuit Protection | Yes |
| Encryption Type: | OCPP 1.6JSON |
| Working Temperature | -25°C to +50°C |
| Humidity | 5%-98% Non-Condensing |
| Dimensions (HxWxD): | 260mm x 260mm x 120mm |
| Weight: | 3.5kg |
| Certificates & compliance: | CE, UKCA, ROHS (TUV) |
| Warranty: | 3 Years |
