Q6 Type2 wall charger unit 7KW Single Phase 5M Tethered cable
Q6 Type2 wall charger unit 7KW Single Phase 5M Tethered cable
Couldn't load pickup availability

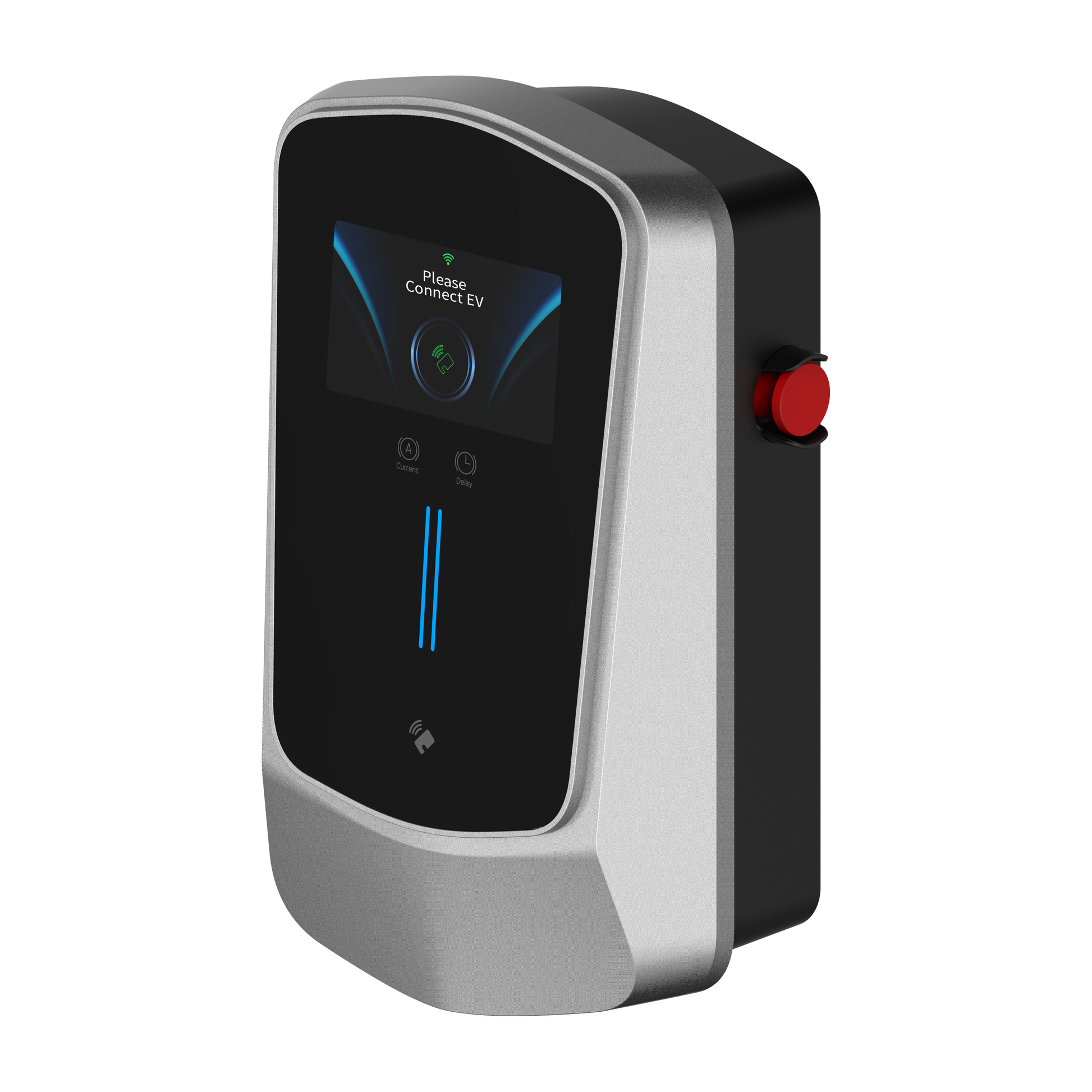

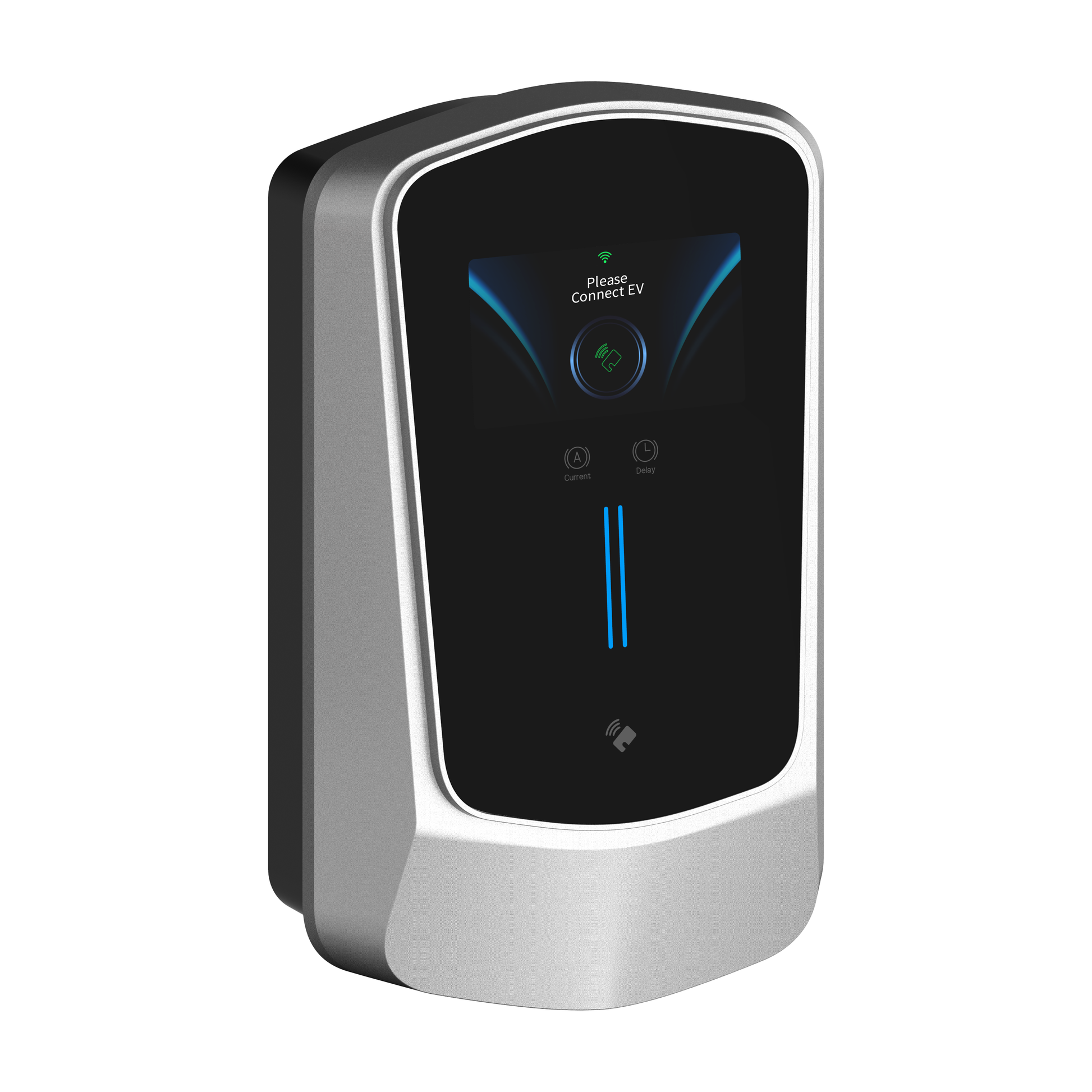

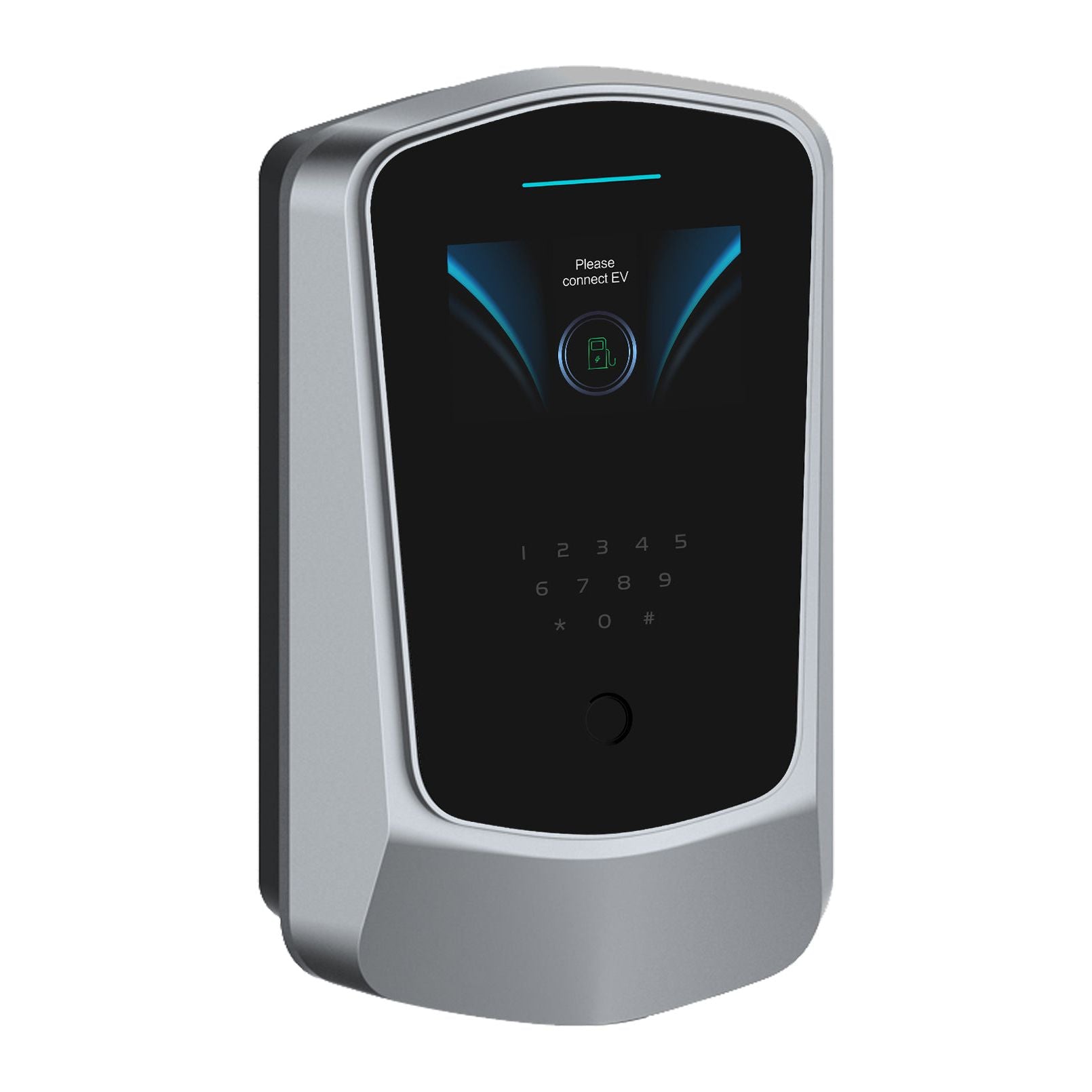

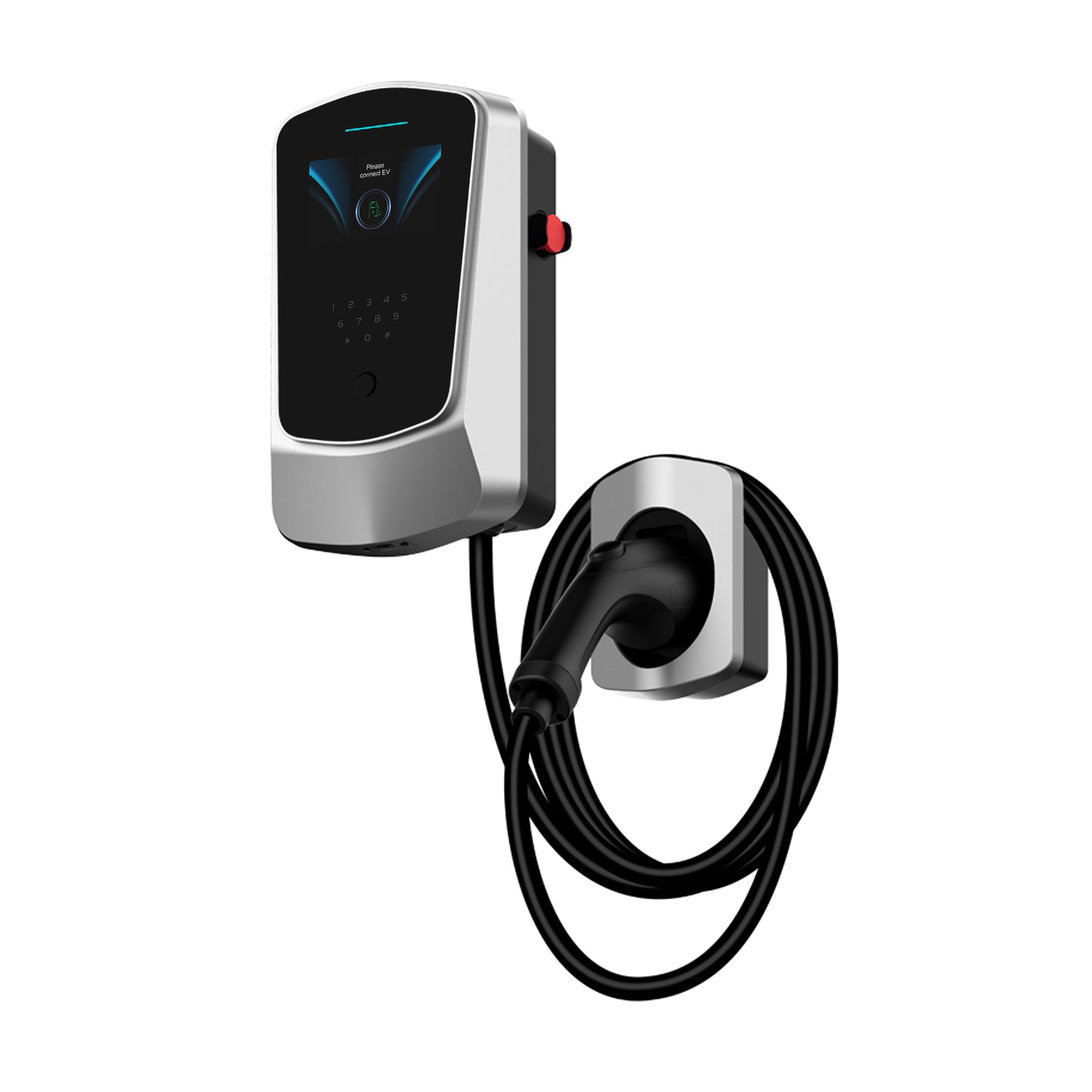

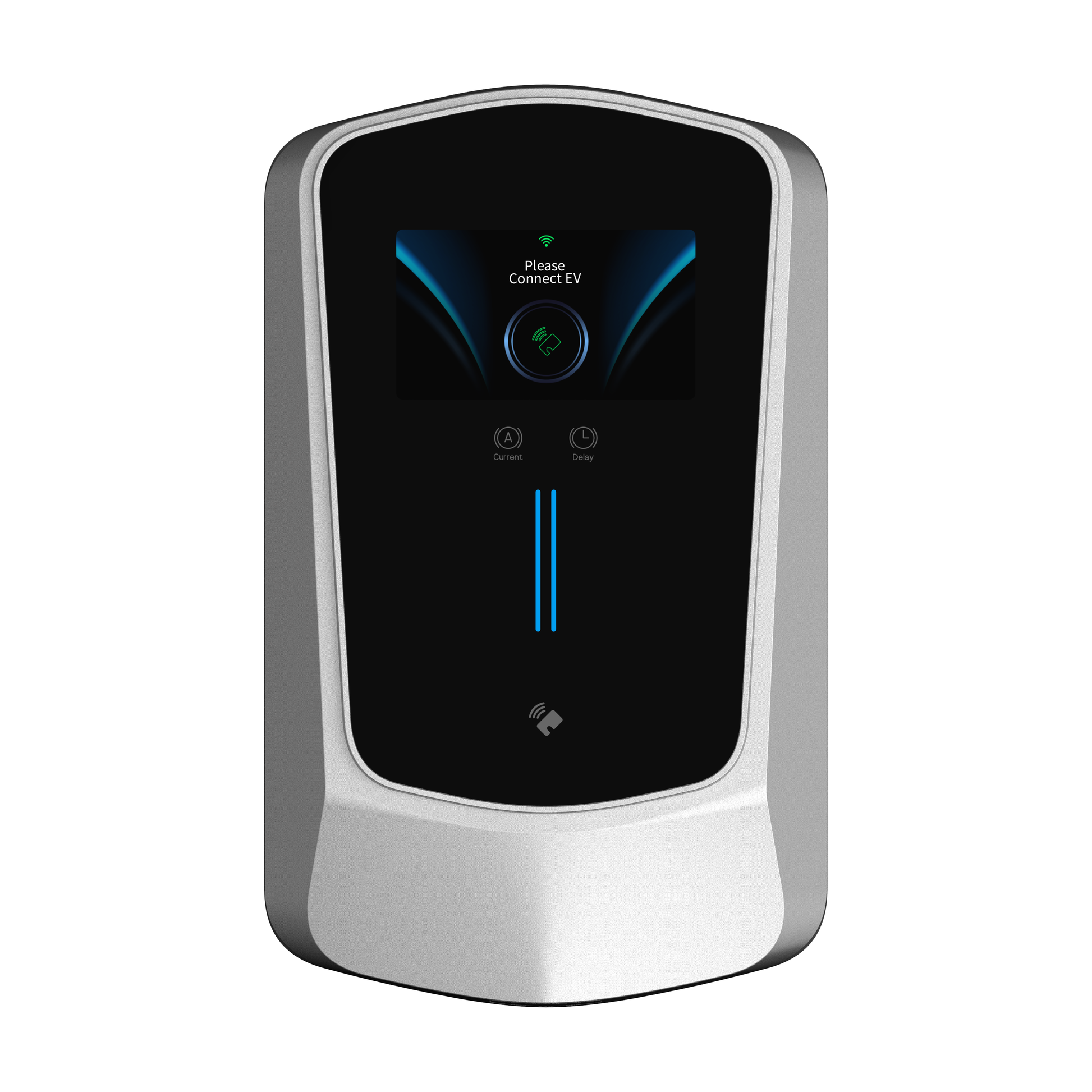

Its compact design makes the Q6 Smart charger from EVSPB a space-saving charging station for electric and hybrid vehicles. The charger is easy to operate thanks to the integrated LCD 4.3" display and provides information about the charging status . The Q6 is protected by an RCD Type A residual current circuit breaker and therefore fulfils the highest safety standards. The high-quality plastic housing is suitable for safe operation of the Q6 outdoors. The ergonomically designed Type 2 charging plug and the high-quality and durable cable with overall 5 metres' reach connect the unit quickly and simply with your electric or hybrid vehicle. The integrated RFID card reader , Finger Print or App control allows you to prevent the charger being used by unauthorised third parties. LED indicators: green/blue/red (blue-standby; green-charging cable is connected to the car; flashing- charging; red-abnormal)
Electrical protection: overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection.
specification
|
Technical Features
|
|||
|
Category
|
IEC62196 Type 2
|
||
|
Output Power
|
7 kw
|
||
|
Input max current
|
32A Single phase
|
|
|
|
Rated Voltage
|
230VAC±10%
|
|
|
|
Rated Frequency
|
50/60HZ
|
||
|
RCD
|
Type A + DC 6 mA
|
||
|
Load Balancing
|
DLB /Meter(Optional)
|
||
|
PEN Protection
|
Built in device
|
||
|
Relative Humidity
|
0-95%
|
||
|
Connector Type
|
IEC62196-2 , 5meters/customise TPU (TUV Certificate)
|
||
|
Charging Control
|
Plug and Play , RFID, Finger Print
|
||
|
Communication Interface
|
Bluetooth /RFID /WIFI /APP
|
||
|
Display Screen
|
LCD 4,3"
|
||
|
Optional
|
LAN(RJ-45) / 4G / Ethernet (Optional)
|
||
|
Communication Protocol
|
OCPP1.6 (Optional)
|
||
|
Environmental
|
|||
|
Operating Temperature
|
-30 to 55℃ Ambient
|
||
|
Operating Humidity
|
Up to 95% Non-condensing
|
||
|
Cooling Method
|
Natural Cooling
|
||
|
Protection Ratings
|
IP55
|
||
|
Protection
|
Short circuit, over voltage, over current, leakage over
temperature, lighting protection, Ground insulation monitoring etc.
|
||
|
Certificate
|
CE ROHS , UK CA
|
||
Share
- Description
- specification
- Delivery & Returns
Its compact design makes the Q6 Smart charger from EVSPB a space-saving charging station for electric and hybrid vehicles. The charger is easy to operate thanks to the integrated LCD 4.3" display and provides information about the charging status . The Q6 is protected by an RCD Type A residual current circuit breaker and therefore fulfils the highest safety standards. The high-quality plastic housing is suitable for safe operation of the Q6 outdoors. The ergonomically designed Type 2 charging plug and the high-quality and durable cable with overall 5 metres' reach connect the unit quickly and simply with your electric or hybrid vehicle. The integrated RFID card reader , Finger Print or App control allows you to prevent the charger being used by unauthorised third parties. LED indicators: green/blue/red (blue-standby; green-charging cable is connected to the car; flashing- charging; red-abnormal)
Electrical protection: overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown protection.
| Technical Features | |||
| Category | IEC62196 Type 2 | ||
| Output Power | 7 kw | ||
| Input max current | 32A Single phase |
|
|
| Rated Voltage | 230VAC±10% |
|
|
| Rated Frequency | 50/60HZ | ||
| RCD | Type A + DC 6 mA | ||
| Load Balancing | DLB /Meter(Optional) | ||
| PEN Protection | Built in device | ||
| Relative Humidity | 0-95% | ||
| Connector Type | IEC62196-2 , 5meters/customise TPU (TUV Certificate) | ||
| Charging Control | Plug and Play , RFID, Finger Print | ||
| Communication Interface | Bluetooth /RFID /WIFI /APP | ||
| Display Screen | LCD 4,3" | ||
| Optional | LAN(RJ-45) / 4G / Ethernet (Optional) | ||
| Communication Protocol | OCPP1.6 (Optional) | ||
| Environmental | |||
| Operating Temperature | -30 to 55℃ Ambient | ||
| Operating Humidity | Up to 95% Non-condensing | ||
| Cooling Method | Natural Cooling | ||
| Protection Ratings | IP55 | ||
| Protection | Short circuit, over voltage, over current, leakage over temperature, lighting protection, Ground insulation monitoring etc. | ||
| Certificate | CE ROHS , UK CA | ||
