Wolttinen Alfen Eve Single S-Line electric car charging station for home, housing association or company, OCPP compatible
Wolttinen Alfen Eve Single S-Line electric car charging station for home, housing association or company, OCPP compatible
Couldn't load pickup availability
Alfen electric car charging station for smart charging max 11kW. The charging station is OCPP compatible. Alfen is one of the largest suppliers of public and housing company charging equipment in Finland and Europe. The Alfen electric car charging station is suitable for home, business, housing company or public charging.
With Alfen electric car charging station and extensive OCPP-implemented cloud service, you can implement load management either locally or as a SaaS service. You can easily invoice, for example, the housing company's charging events and manage users using RFID cards or an app. If you wish, you can outsource the billing completely. Internal MID measurement.

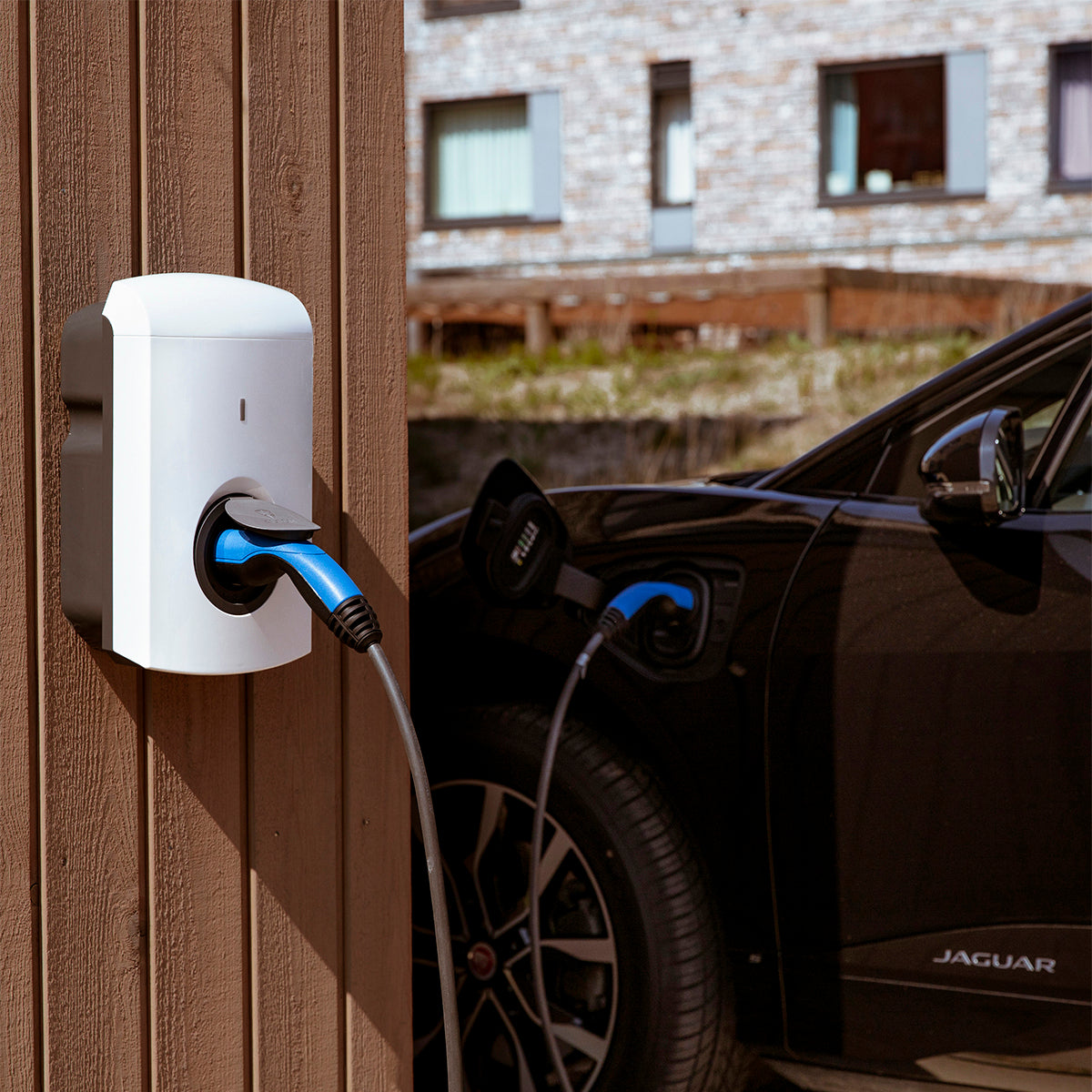

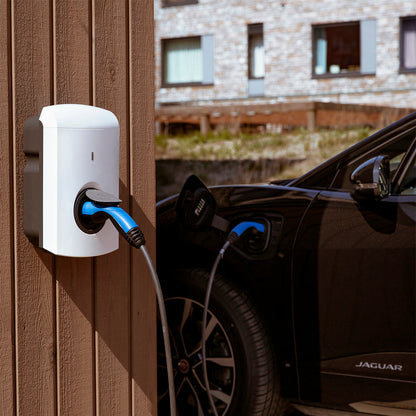

The Alfen Single S-Line electric car charging station is designed to offer smart functions. It can be mounted on a wall or pole. Charging can also be reduced based on local electricity metering (Dynamic Load Management).
Alfen electric car charging station can implement even complex systems, including local load sharing and cloud services. OCPP - compatible charging device, the device comes pre-installed with the Woltti cloud service and mobile connection.
The Alfen electric car charging station is available in a version with a Type2 plug or an 8-meter cable. This is suitable for locations where the normal cable length is not sufficient. The cable can also be replaced later.

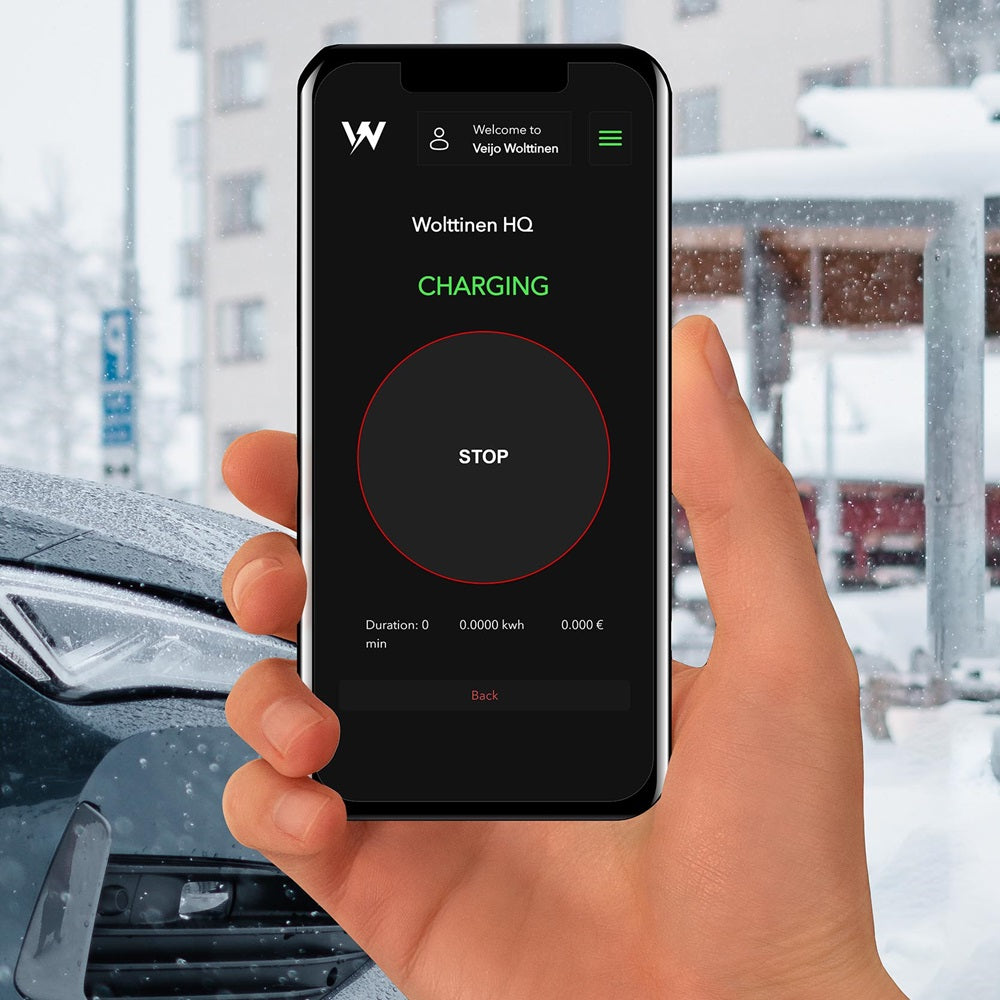

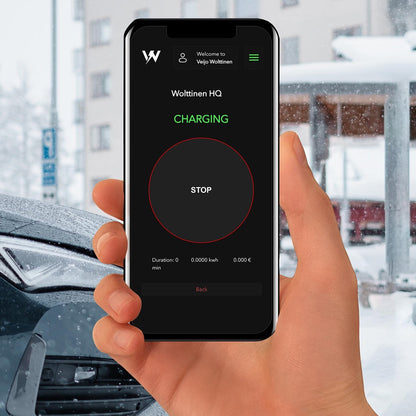

The Alfe charging station is compatible with the Woltti cloud service. The service makes it easy to manage housing associations' and companies' systems, such as invoicing and load management. The service also includes the Woltti App, which allows you to manage your charging. Ask our sales for more information.
Cloud services are additional services and are not included in the price of the charger. However, the charger works perfectly without additional services.
The charger is delivered Plug-And-Play ready, meaning installation only requires normal electrical work.
Specification

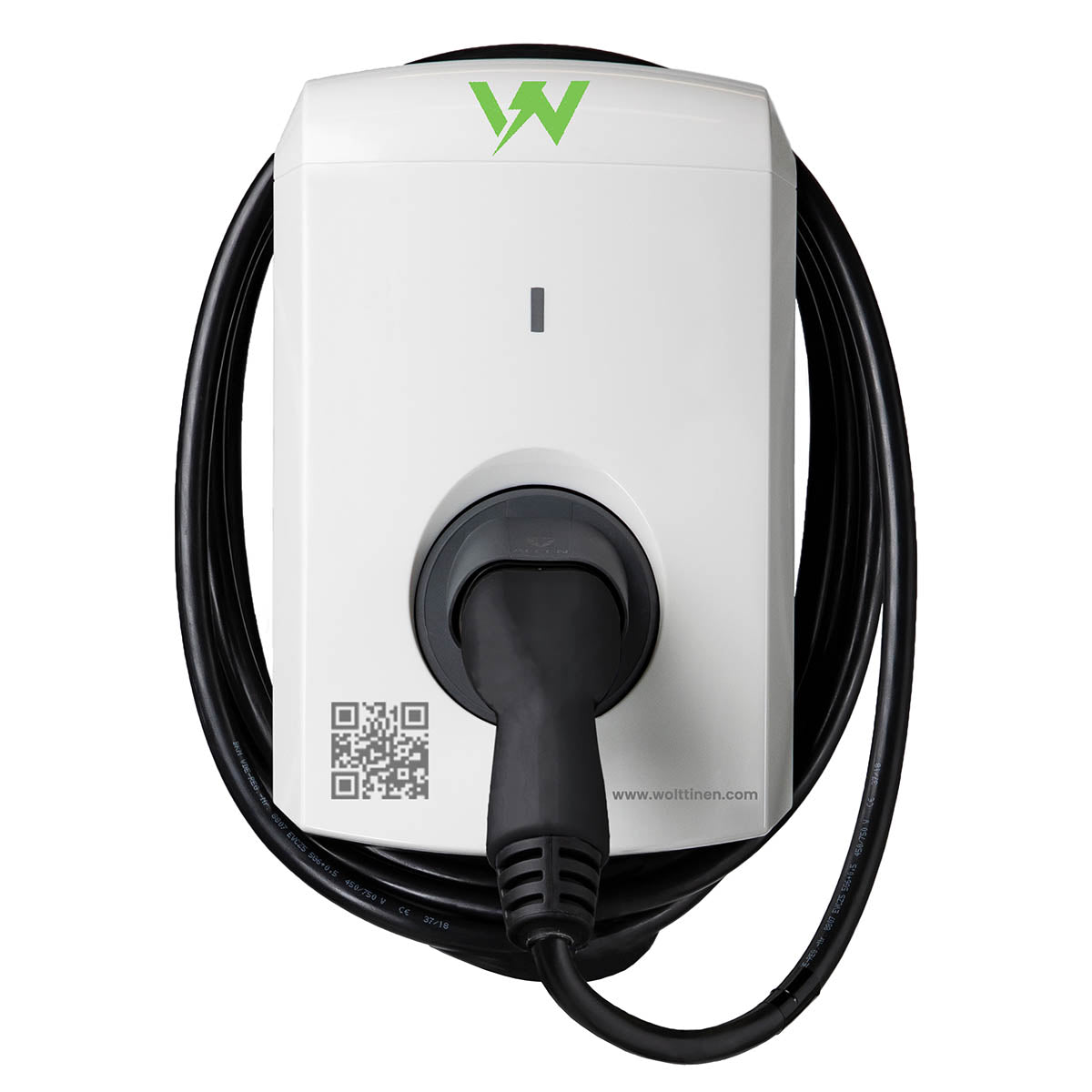

- Model: Alfen electric car charging station, Eve Single S-Line T2
- Type: Wallbox, a permanently installed electric car charger for home, business or housing association.
- Connector car: Type2
- Plug: Available with plug and cable
- Type2 cable length: 5 m or 7.5 m (interchangeable)
- Place of use: Home/housing associations/businesses/public smart charging, OCPP compatible
- Current: 32A, 3-Phase (Can also be installed as 1-phase). Current can be reduced.
- Power: 3.7 - 11kW
- Size: 370mm*240mm*130mm
- Weight: 7 kg
- Charging method: AC
- Voltage: 230V
- Residual current: B-residual current detector (for panel A)
- Manufacturer: Alfen
- Mobile connection:4G
- RFID: No
- MID Meter: Internal Physical Meter (Not Electronic)
- App: can be connected to the OCPP system
- Protection level: IP55
- Certificates: CE
- Warranty 2 years (extendable to 5 years)
Before installation, make sure that the power supply has enough capacity for the charging station. It is recommended that the device be installed by a professional electrician. The device can be installed indoors and outdoors.
The device warranty is valid when our installation is used or the installation is performed by a professional electrician and a protocol has been drawn up regarding the installation.
Alfen electric car charging station is a smart choice for charging. You can easily connect it to an online service, e.g. Wolttinen service for 5 years for 195e.
All our products have CE certification.
